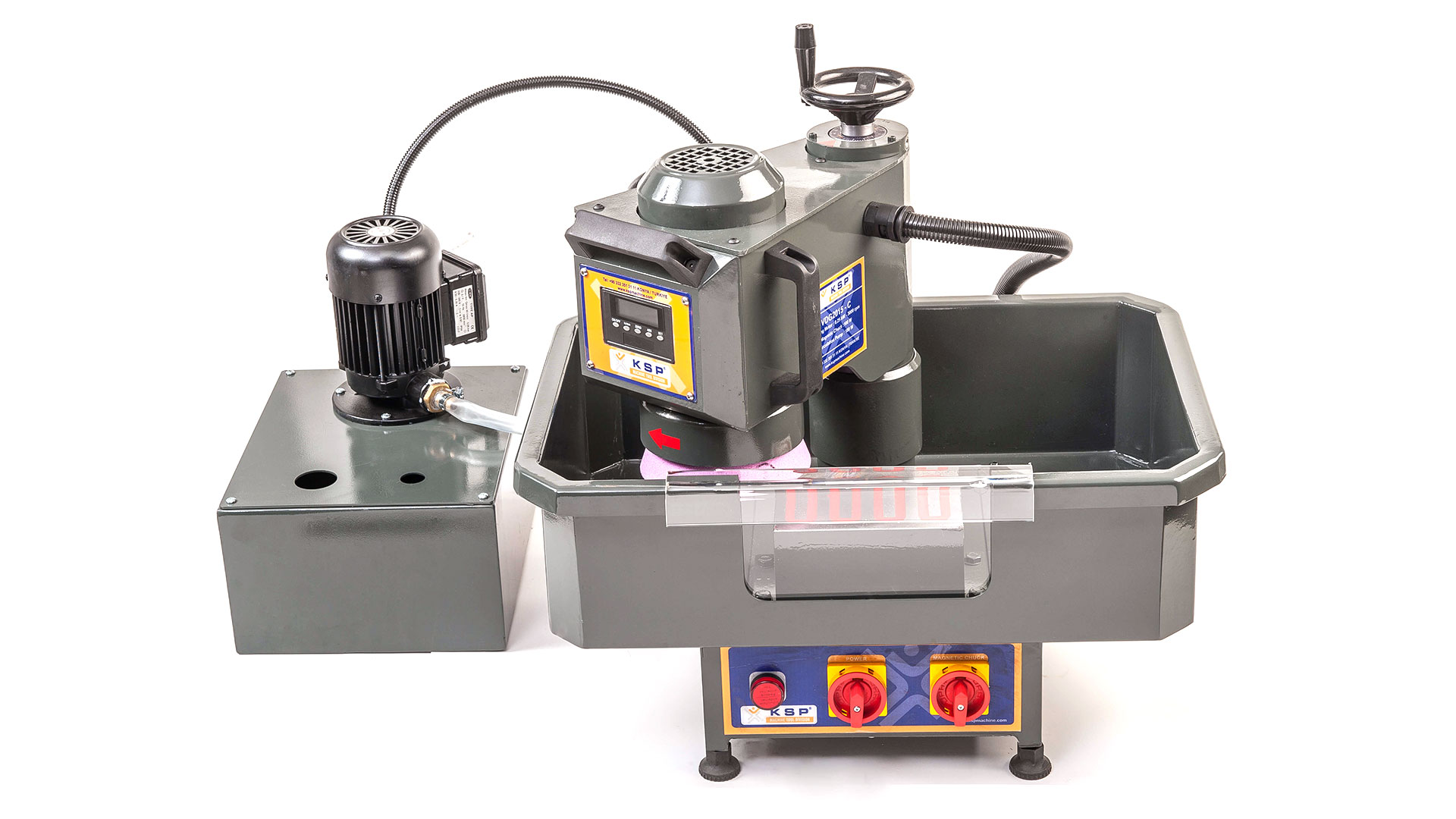

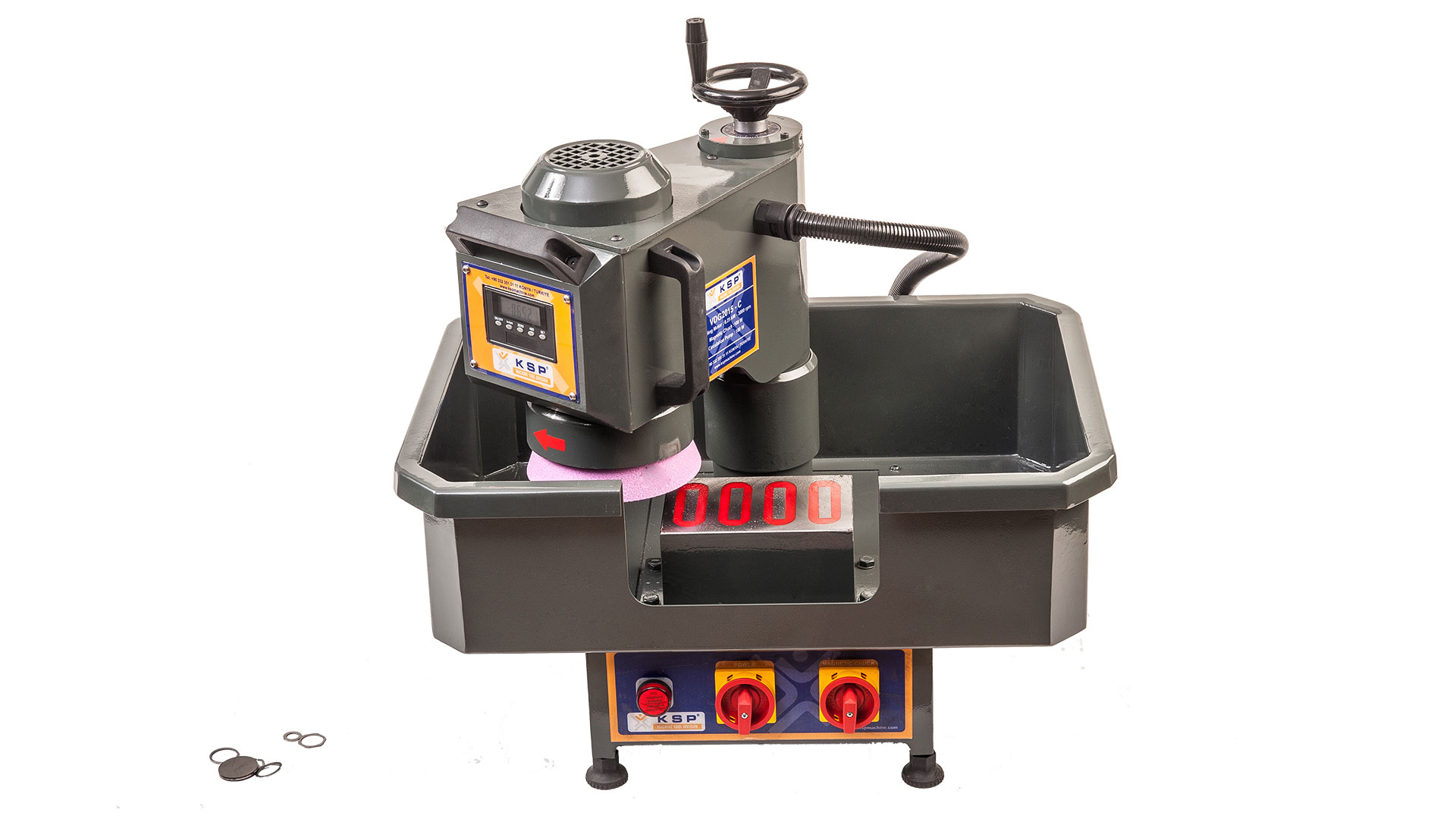

Combining nearly 20 years of experience in the machinery industry with innovative engineering solutions, KSP Machine has set a new standard in the market with its VDG Grinding Series. The VDG2015-C model, in particular, ensures high stability during operation by securely holding even the smallest parts with its powerful magnetic chuck.

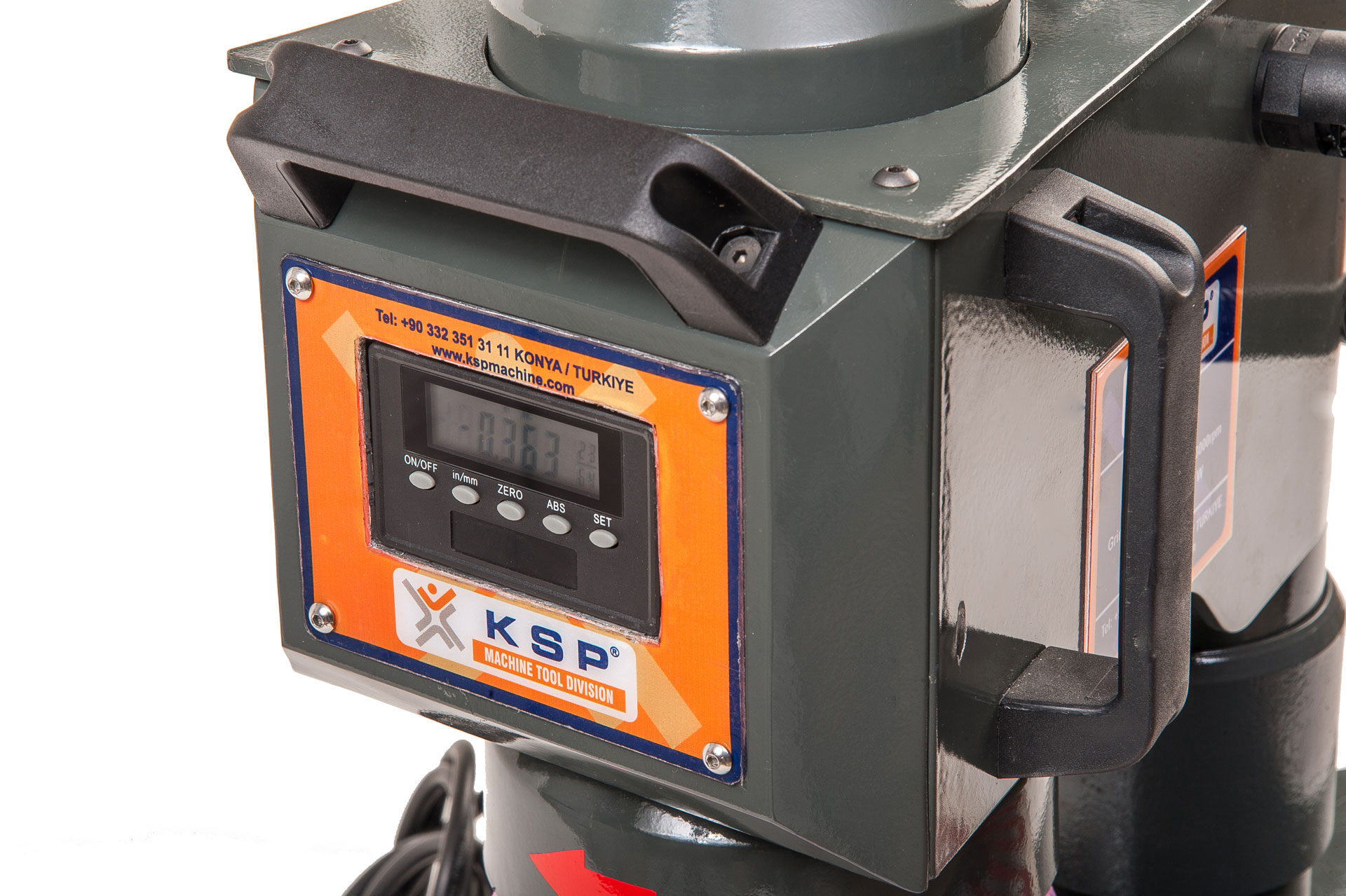

The grinding head, which can rotate up to 130°, and the 150 mm grinding wheel deliver excellent grinding performance from every angle. The integrated cooling system prevents overheating during the process, protecting the workpiece and maintaining top-level grinding quality. With 0.01 mm grinding precision and an electronic indicator that displays feed movement, it provides the user with full control and reliable results.

General Features :

- Robust and durable body structure
- 0.25 kW grinding wheel motor
- 0.18 kW cooling pump
- Up to 0.01 mm high grinding precision
- 100 Watt magnetic grinding chuck (150×100 mm dimensions)
- Long service life with 150 mm grinding wheel
- 240 Volt (other voltage options available upon request)
- Dimensions: 950 × 400 × 850 mm, Weight: 50 kg
